Description
SPECIFICATIONS:
Camera
Image Sensor 2MP CMOS image sensor
Signal System PAL/NTSC
Effective Pixels 1920 (H) ×1080 (V)
Min. illumination 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens
3.6 mm (6 mm, 8 mm, 12 mm, 16 mm optional)
Field of view: 82.2°(3.6 mm), 54°(6 mm), 37.7°(8 mm), 24.2°(12 mm), 18.8°(16 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62 dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 6 W
Protection Level IP66
IR Range Up to 80 m

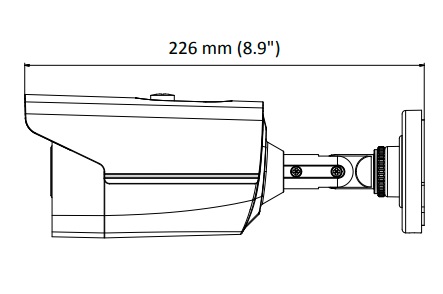

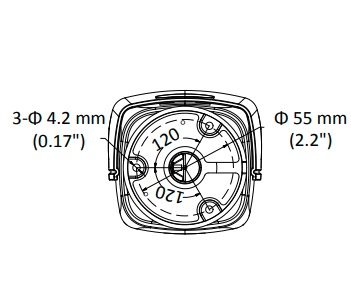

Dimensions 86.7 mm × 81.6 mm × 226 mm(3.4″ × 3.2″ × 8.9″)
Weight 430 g (0.95 lb.)
