Description

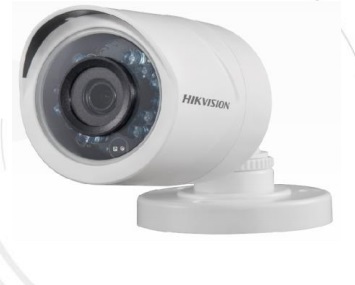

HIKVISION CCTV DS-2CE1AC0T-IRP/ECO
Camera
Image Sensor 1MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1296(H)*732(V)
Min. illumination 0.1 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens: 2.8mm, 3.6mm,optional
Angle of View: 70.9°(3.6mm), 92°(2.8mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 4W
Protection Level IP66
IR Range Up to 20m

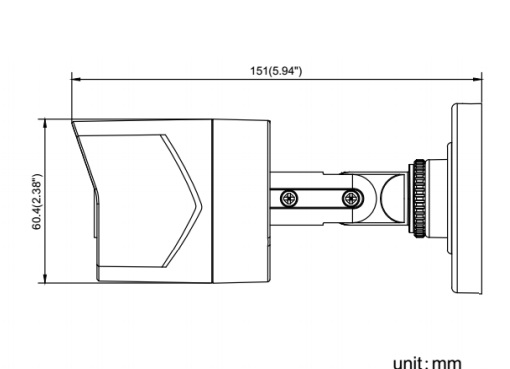

Dimensions Φ70×151 mm (Φ2.76” ×5.94”)
Weight 300 g
