Description
SPECIFICATIONS:
Camera
Image Sensor 1 MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1296 (H) × 732 (V)
Min. illumination 0.1 Lux@(F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
3.6 mm (6 mm, 8 mm, 12 mm, 16 mm optional)
Lens
Field of view: 70.9° (3.6 mm), 56.7° (6 mm), 38.6° (8 mm), 27.5° (12 mm), 17.7° (16 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 5 W
Protection Level IP66
IR Range Up to 80 m

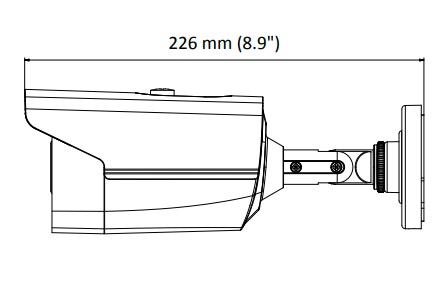

Dimensions 86.7 mm × 81.6 mm × 226 mm(3.4″ × 3.2″ × 8.9″)
Weight 700 g (1.54 lb.)
