Description
SPECIFICATIONS:
Camera
Image Sensor 1 MP CMOS image sensor
Signal System PAL/NTSC
Effective Pixels 1296(H) × 732(V)
Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 (1/30 )s to 1/50,000 s
2.8 – 12 mm @ F1.4
Lens
Angle of view: 71.78° – 23.42 °
Lens Mount φ14
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 4 W
Protection Level IP66
IR Range Up to 40 m

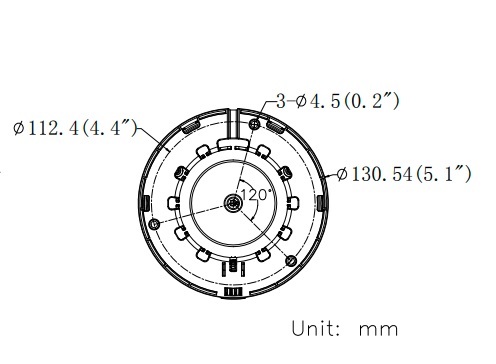

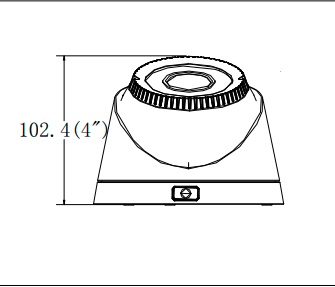

Dimensions Φ130.54 × 102.4mm (Φ5.1” × 4”)
Weight Approx. 710g
