Description
SPECIFICATIONS:
Camera
Image Sensor 1 MP CMOS image sensor
Signal System PAL/NTSC
Effective Pixels 1296 (H) × 732 (V)
Min. illumination 0.1 Lux@(F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens
2.8 mm, 3.6 mm, 6 mm optional
Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62 dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
Protection Level IP66
IR Range Up to 20 m

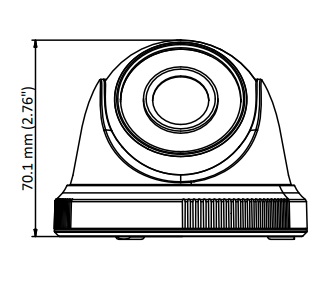

Dimensions Φ 89.9 × 70.1 mm (3.54″ × 2.76″)
Weight 280 g (0.62 lb.)
