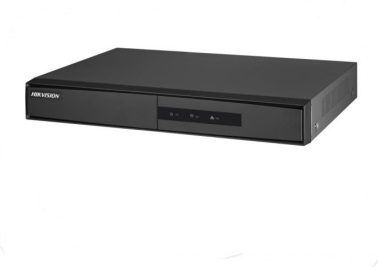

HIKVISION DS-7B16HGHI-F1 SERIES TURBO HD DVR
HIKVISION DS-7B16HGHI-F1 SERIES TURBO HD DVR - Image 2

HIKVISION DS-7B16HGHI-F1 SERIES TURBO HD DVR

HIKVISION DS-7B16HGHI-F1 SERIES TURBO HD DVR

Features & Functions:

Video Input and Transmission
Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal

Compression and Recording
One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p
Video Output
HDMI/VGA output at up to 1920 × 1080 resolution

Storage and Playback
One SATA interface (up to 6 TB capacity per HDD)
4/8/16-ch synchronous playback at up to 720p resolution
Smart search for efficient playback
Smart Function
Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
VQD (Video Quality Diagnostics)
Unlock pattern for device login for the admin and clear-text password available
GUID file can be exported for password resetting and imported for finding the forgotten password
Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
One self-adaptive 10/100Mbps network interface
Output bandwidth limit configurable



Category:

SPECIFICATIONS:

Video/Audio input Video compression H.264+/H.264
Analog video input 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Turbo HD input 1080p25, 1080p30, 720p25, 720p30
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
IP video input 2-ch(up to 18-ch)
Up to 2MP resolution
Audio compression G.711u
Audio input/Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio output HDMI/VGA output 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame rate Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
4CIF/2CIF@6fps;
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 4 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous playback 16-ch
Network management Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk

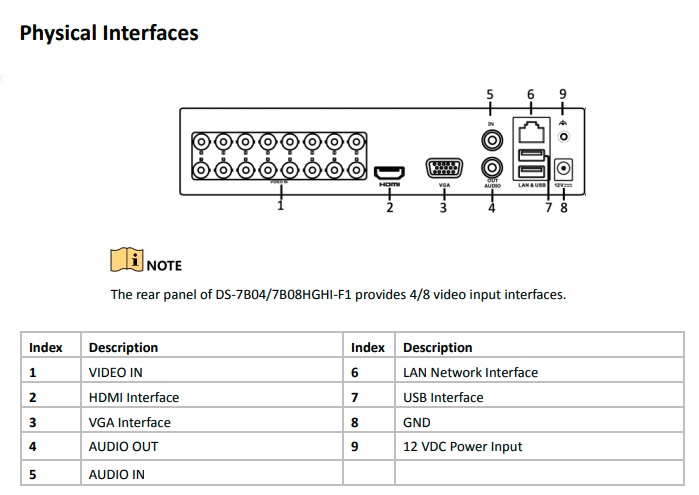

External interface Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
USB interface Rear panel: 2 × USB 2.0
General Power supply 12 VDC
Consumption (without HDD) ≤ 20 W
Working temperature -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working humidity 10% to 90%
Dimensions (W × D × H) 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight (without HDD) ≤ 1.2 kg (2.6 lb)
